CURN101-HF
Manufacturer:
Comchip Technology
Mfr.Part #:
CURN101-HF
Datasheet:
Description:

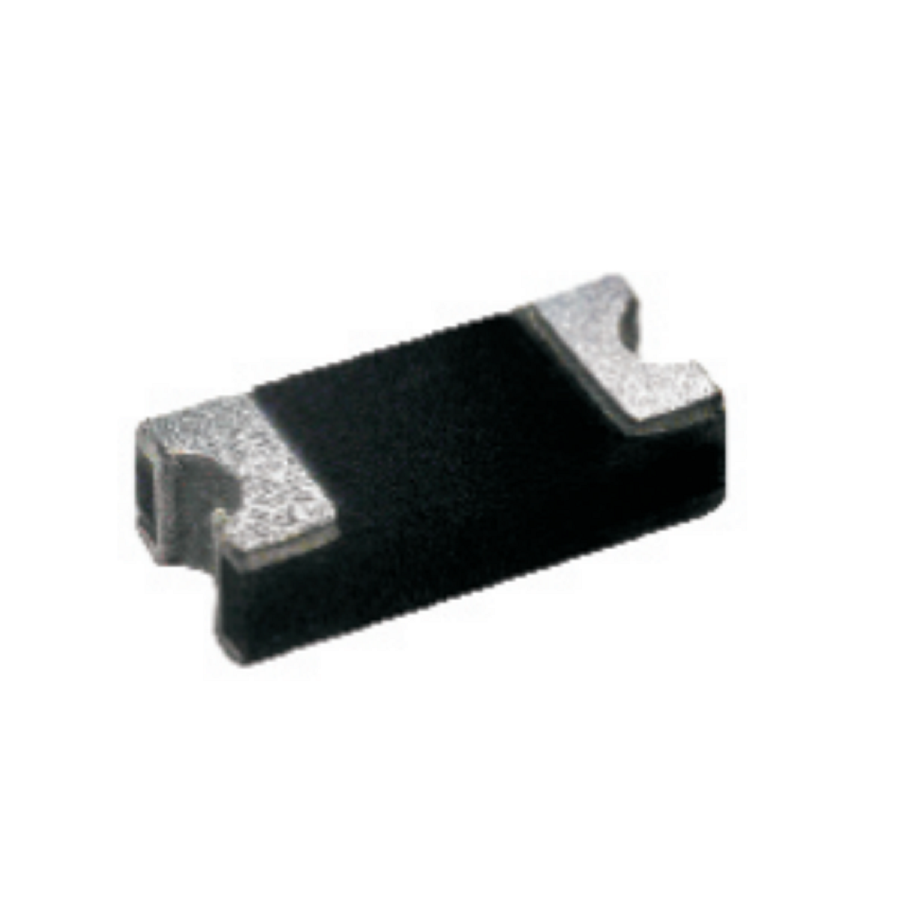

Rectifier Diodes 1206(3216 Metric) SMD/SMT Rectifiers Single Forward Current:1 A Forward Voltage:1.45 V Reverse Voltage:200 V
| Parameter | Value |
|---|---|
| Capacitance | 10 pF |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Type | Rectifiers |
| Forward Current | 1 A |
| Forward Voltage | 1.45 V |
| Reverse Recovery Time | 50 ns |
| Average Rectified Current | 1 A |
| Max Reverse Voltage (DC) | 200 V |
| Element Configuration | Single |
| Max Surge Current | 30 A |
| Reverse Voltage | 200 V |
| Reverse Current | 80 nA |
| Recovery Time | 50 ns |
| Schedule B | 8541406050 |
| Peak Reverse Current | 80 nA |
Stock: 4950
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.09917 | $0.99170 |
| 50 | $0.09860 | $4.93000 |
| 100 | $0.09803 | $9.80300 |
| 500 | $0.09746 | $48.73000 |
| 1000 | $0.09575 | $95.75000 |
| 3000 | $0.06951 | $208.53000 |
| 5000 | $0.06394 | $319.70000 |
| 10000 | $0.05882 | $588.20000 |
